Kadee 804 - #804 O Gauge Medium Centerset Plastic Couplers with Plastic Gearboxes - Black (2pcs)

by KADEE

Details

Information from Kadee's website:

This industry leading coupler features Original Style Head Medium Centerset Plastic Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #804 Plastic Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

O-Scale

Simple Drop in Design
Trouble Free Operation
Compatible with All Kadee® O-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...



Package Includes:

(2) Each #804 Original Style Plastic Couplers - Medium Centerset Shank
(2) Each #817 Plastic Gearboxes & lids
(3) Each #850 O Scale Centering Springs


#804 Plastic Coupler Features:
Material - Plastic
Shank Length - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset - Centerset
Centering Spring - #850 O Scale Centering Springs
Knuckle Spring - #845 O Scale Knuckle Springs
Head - Original Style Head
Works In Place of - #740, #745, #800, #801, #805, & #816 O Scale Medium Centerset Shank Couplers
Works With - #817, #818, #819 Draft Gearboxes

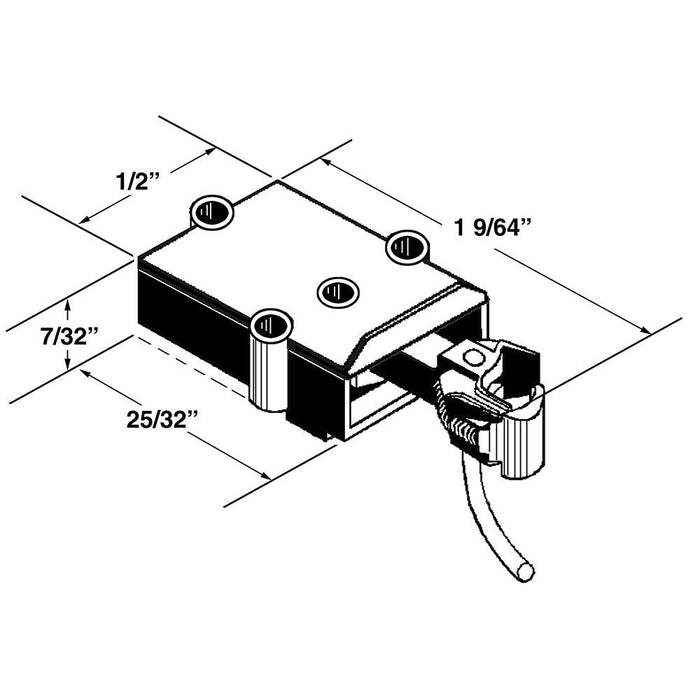

#817 Plastic Draft Gearboxes & Lids Features:
Material - Plastic
Dimensions - 25/32"L x 1/2"W x 7/32"H
Works With - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

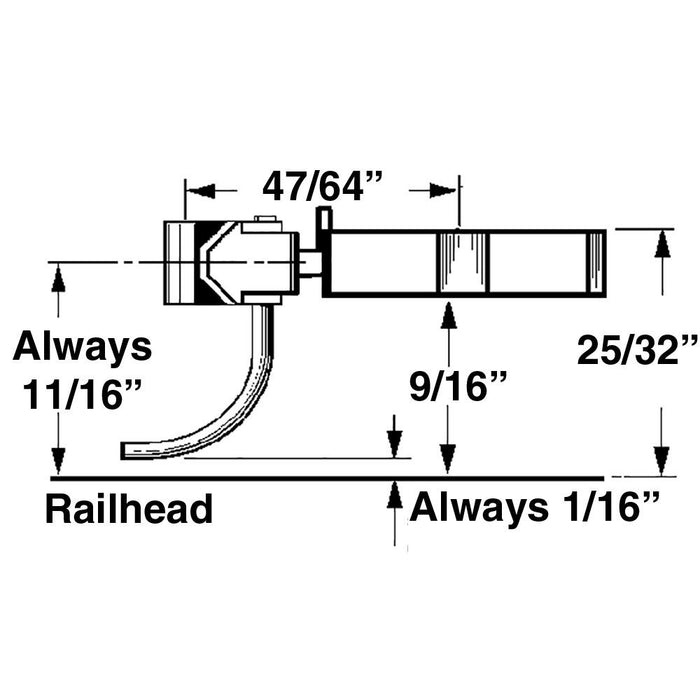

Mounting Specifications:
Mounting Height - 25/32"
Centerline - 1 1/16"
Trip Pin Height - 1/16"
Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Recommended Tools:

#812 O Scale Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#240 Double Headed Pin Vise
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap (2-56) and Drills (#50 and #43)
Original price $12.95 - Original price $12.95
Original price
$12.95
$12.95 - $12.95
Current price $12.95
