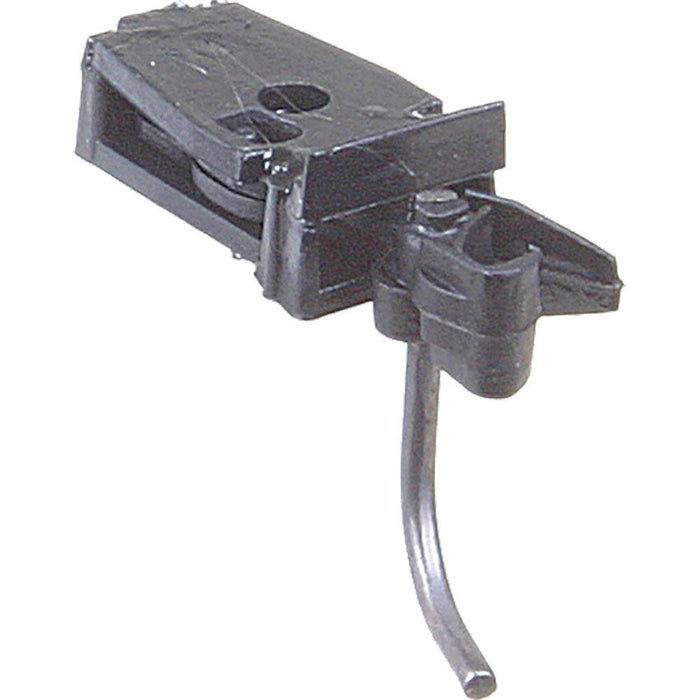

Kadee 714 - #714 HOn3 Gauge Split Shank Plastic Couplers - Black (4pcs)

by KADEE

Details

Information from Kadee's website:

#714 Split Shank Plastic Couplers - HOn3 Coupler - Black

HOn3-Scale MAGNE-MATIC

The #713 & #714 Split Shank Plastic Coupler will work anywhere a #705 Metal Coupler will work.

This industry leading coupler features a plastic coupler and coil centering spring and comes complete with a insulated draft gearbox and lid. The #714 Magne-Matic® Split Shank Couplers may be body mounted on any flat surface; HOn3-Scale locomotives or rolling stock.
(The #702 Coupler Assembly Fixture can be used to ease assembly)

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Also adaptable to TT-Scale

Unassembled Kit

#714 Instructions


Black colored

Two pair per package

HOn3-Scale

0-48 or 0-80 screws are the most commonly used screws.
Screw length will very depending on the mounting situation.

Package Includes:

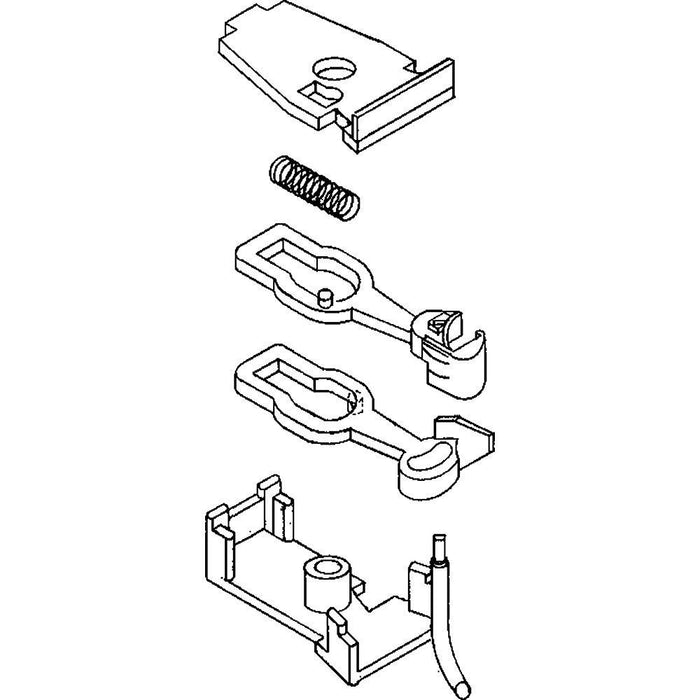

(2) Pair Unassembled Split Shank Couplers
(2) Pair Unassembled Gearboxes & Lids
(5) Each #714 Trip Pins
(6) Each #636 Centering Springs
(4) Each #402 Self Tapping Screws 0-48 x 1/4"

#714 Split Shank Coupler Features:
Material - Plastic

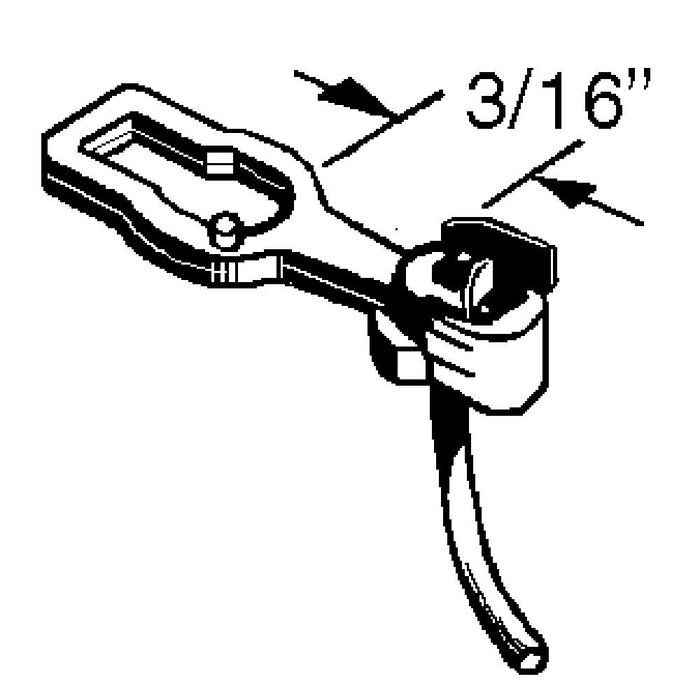

Shank Length - (3/16")
Coupler Offset - Centerset

#714 Gearbox Features:
Material - Insulated Plastic

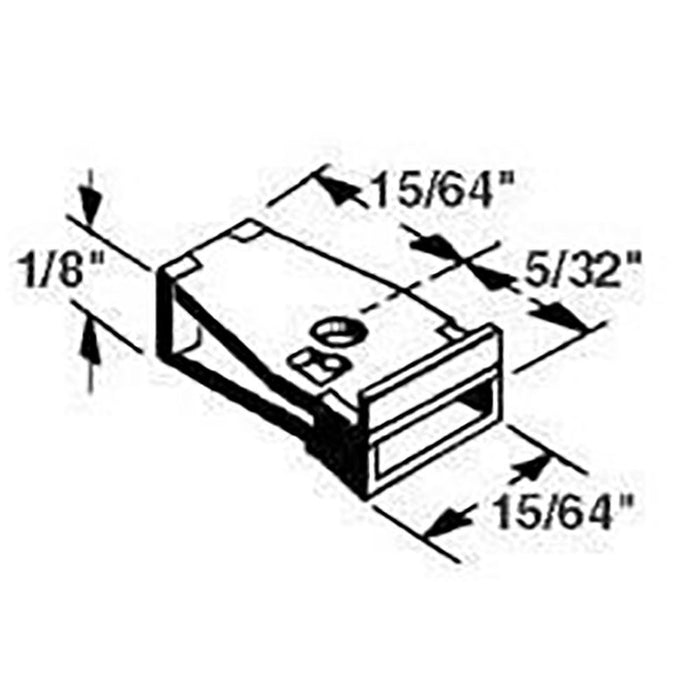

Dimensions - 27/64"L x 15/64"W x 1/8"H

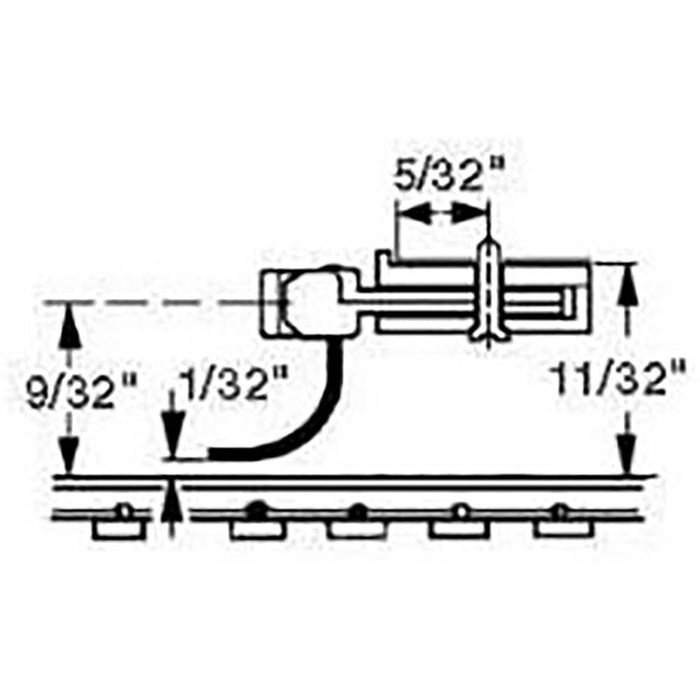

Mounting Specifications:
Mounting Height - 11/32"
Centerline - 9/32"
Trip Pin Height - 1/32"
Center Hole - 0-48 Screw. (Screw length will vary) no less then 1/4" length.

Recommended Tools:

#704 Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#239 Mark V Gripper
#240 Double Headed Pin Vise
#241 Dual Tool
