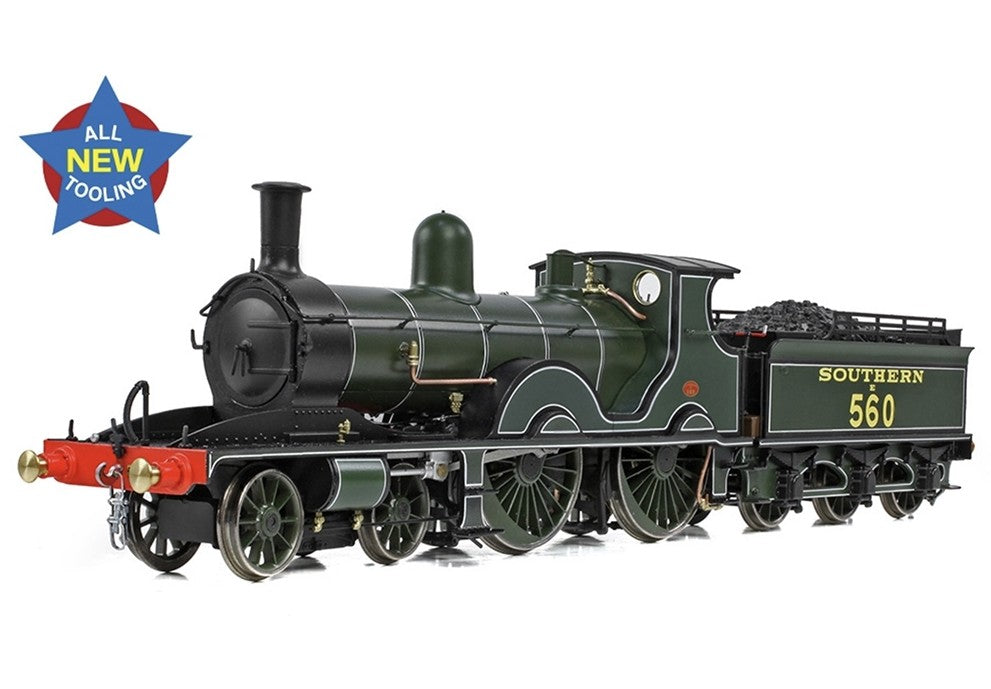

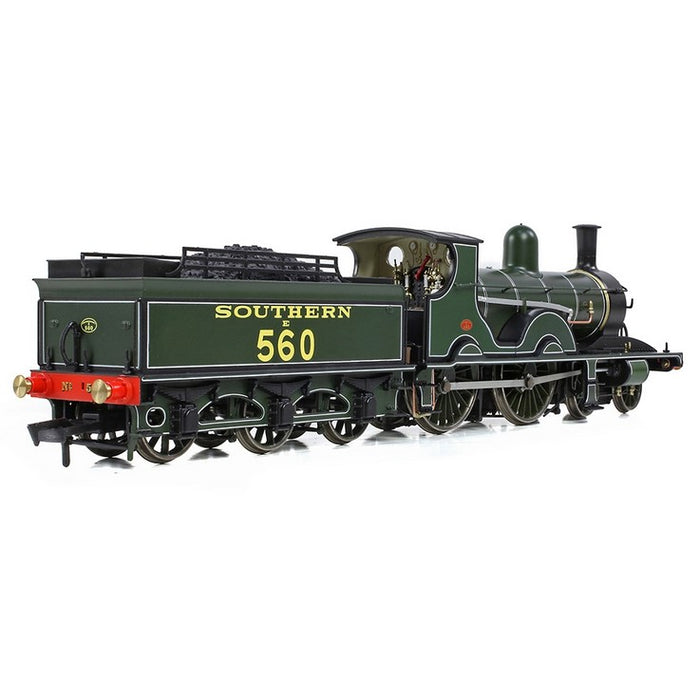

EFE E85024 LSWR Adams T3 Steam Locomotive 560 - SR Lined Maunsell Green

MECHANISM:

Five pole motor with flywheel mounted in the locomotive, driving the rear set of driving wheels
Electrical pickup from all driving wheels and tender wheels
Separate metal bearings fitted to each driving wheel axle and each bogie wheel axle
Metal bearings fitted to each tender wheel axle
Diecast metal chassis fitted to both the locomotive and tender
Gearing arranged for prototypical running speeds and haulage capabilities
16.5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
Valve gear of metal construction
Discreet snap-together locomotive to tender drawbar with integral close coupling mechanism and electrical connections
Sprung front bogie
Front bogie features a clip-in front section with optional blank filler or coupling adapter with integral coupling pocket to NEM362 standards
Tender features a close coupling mechanism which is fitted with a coupling pocket to NEM362 standards
Designed to operate on curves of second radius (438mm) or greater

DETAILING:

Diecast metal boiler, running plate, front splashers and locomotive footsteps
Injection-moulded cab, tender body and frames
Additional metal detail parts including etched step treads, handrails and handrail knobs
Sprung metal buffers
Separately fitted detail parts including lamp irons, injectors, whistle, vacuum pipes, brakes and brake rigging (on both the locomotive and tender)
Representation of the inside valve gear
Tender fitted with coal-effect load
Cab interior detailing including boiler backhead controls and gauges, brake standard and tender sandboxes
Hinged and posable metal fall plate between the locomotive and tender
Each model supplied with a full set of decorated, model-specific accessories including bogie splashers, guard irons and etched engine head signals – LSWR-period models are supplied with LSWR-style discs and LSWR diamonds, SR-period models are supplied with SR-style discs
Where appropriate, models will be supplied with a set of authentically decorated etched number plates

LIGHTING:

Firebox lighting with twin LEDs operating on DC and DCC
Textured filter in the firebox hole to simulate a burning coal fire

DCC:

Next18 DCC decoder interface located in the tender
