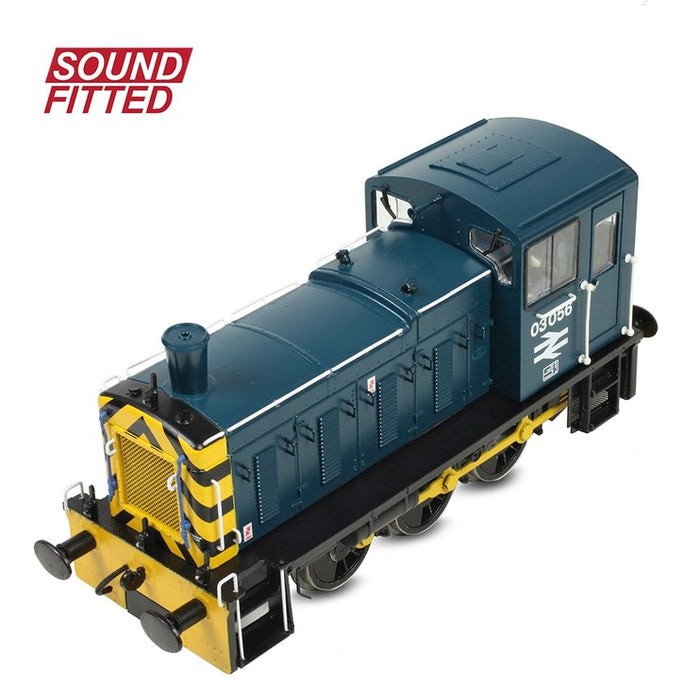

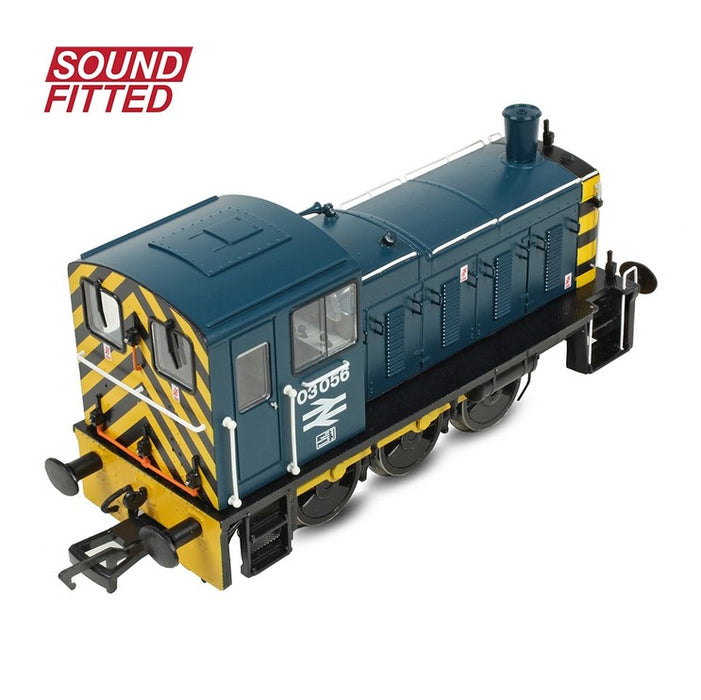

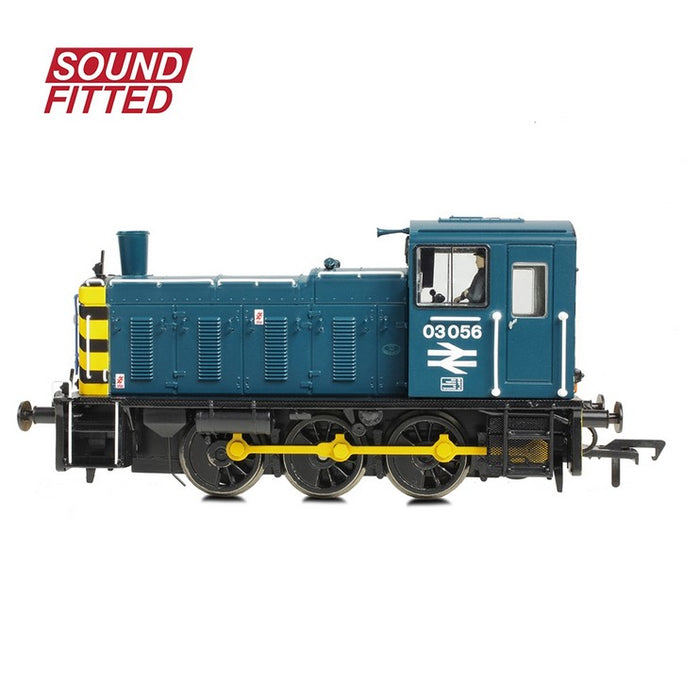

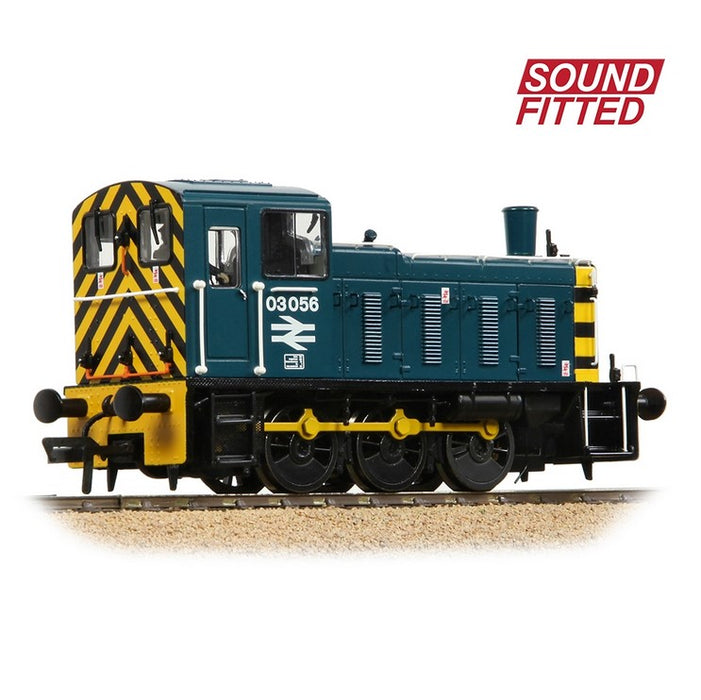

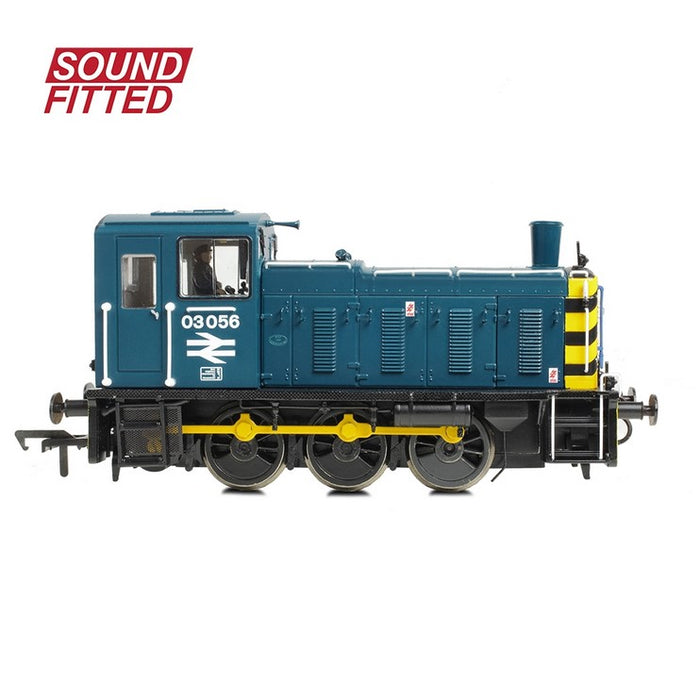

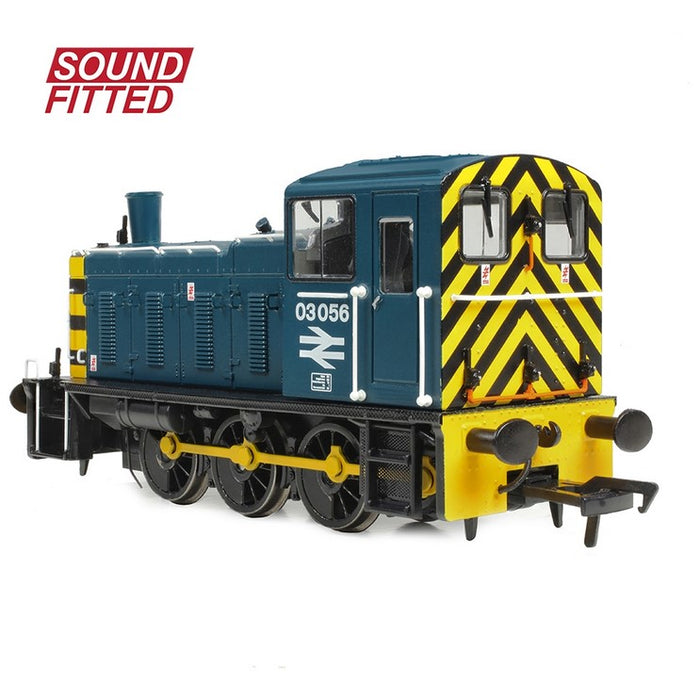

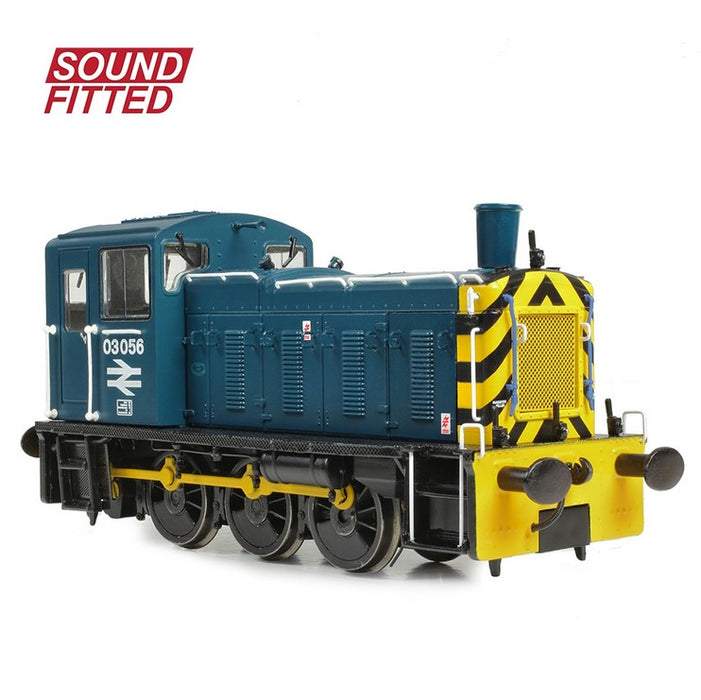

Branchline 31-362BSF Class 03 Diesel Shunter #03056 - British Rail Blue

Information from Bachmann Europe's website:

MODEL FEATURES:

Bachmann Branchline OO Scale
Era 7
Pristine BR Blue (Wasp Stripes) livery
Running No. 03056
Flowerpot Chimney
Single Air Horn
NEM Coupling Pockets
Sprung Buffers
Powerful Coreless Motor
Detailed Cab Interior with pre-fitted Driver in one cab
Cab Lighting (when used on DCC only)
Locomotive Ready to Accept a Speaker
Accessory Pack
SOUND FITTED - Fitted with a Zimo MS590N18 DCC Sound Decoder - See below for the function list
Length 105mm



SOUNDS:

F1 - Sound On/Off

F2 - Brake

F3 - Horn (Playable)

F4 - Two-Tone Horn

F5 - Light Engine Mode

F6 - Engine Idle

F7 - Shunting Mode

F8 - Cold Start

F9 - Flange Squeal (Speed Related)

F10 - Cab Light

F11 - Buffering Up

F12 - Coupling Sounds

F13 - Low Toot

F14 - High Toot

F15 - Windscreen Wipers

F16 - Dispatch Whistle

F17 - On - Driver's Door Opening / Off - Driver's Door Closing

F18 - Fade All Sounds

F19 - On - “Draw up” / Off - “6ft, 4ft, 2ft, Whoa!”

F20 - “Squeeze Up”

F21 - On - "Going Under” / Off - "Clear to go under”

F27 - Volume Down

F28 - Volume Up

CLASS 03 HISTORY

The Class 03 diesel shunters were introduced between 1957 and 1962 and with 230 built, the type was one of BR's most successful small 0-6-0 diesel-mechanical shunters and was adopted as BR’s standard small shunter. A development of the Class 04 ‘Drewry’ shunter, construction was shared between British Railways' Swindon Works and Doncaster Works and initial allocations for the class covered all regions except Scotland. Shunting was the main employment, with their short wheelbase and light weight making them particularly useful in areas where weight restrictions or tight trackwork existed. Examples were also assigned to station pilot duties and due to the short wheelbase, it was common for them to be coupled to a ‘shunter’s truck’ or ‘runner wagon’ to ensure sufficient length for reliable operation of track circuits.

Weighing in at 30 Tons, some 18 Tons less than the Class 08 diesel shunter, the Class 03’s were fitted with Gardner engines and their distinctive jackshaft drive arrangement gave the locomotives a top speed of 28½ mph. Despite their usefulness, a downturn in shunting requirements meant that withdrawals began in 1968, although the last remained in service on mainland Britain until 1987. Two examples operated on the Isle of Wight, with lowered cab roofs to account for the restricted loading gauge, and these remained in traffic on the island until 1993. One of these Isle of Wight locos, No. 03179, was resurrected by West Anglia Great Northern in 1998 to shunt their Hornsey Depot. Subsequently operated by First Capital Connect, the loco was finally withdrawn in 2008 after which the locomotive was preserved bringing the total number of surviving examples to 56.
